3 Inch Lift Kit | Coilover Conversion | Ford F-250 Super Duty 4WD (2005-2007)

Product Code: RC-48657

OVERVIEW


Features

  • Easy bolt-on installation.
  • Increased ground clearance.
  • Levels the front with the rear of the vehicle.
  • Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
  • Fabricated blocks are stronger and offer a longer lifespan than cast blocks.


    Notes

  • Does NOT F-350 models.
  • Does NOT fit gas engine models.
  • Does NOT fit dually models.
  • A carrier-bearing drop bracket is needed for trucks equipped with a 2-piece rear driveshaft.
  • SKU: 1197.
  • Models equipped with rear overload springs will need u-bolt kit7649.


    • Install Time

  • 5 - 6 hours


    Instruction

    View Instruction Sheet

    Fitment

  • 2005-2007 4WD Ford F-250 Super Duty


    Tire Fitment

  • 35x12.50R20 Factory 20 8x170 - -
  • 35x12.50R18 Factory 18 8x170 - -
  • 35x12.50R17 Factory 17 8x170 - -
  • 35x12.50R17 17x8.5 8x170 +0 -
  • 35x12.50R17 17x8.5 8x170 +1 -
  • 35x12.50R17 17x9 8x170 -12 -
  • 315/70R17 17x9 8x170 -12 -
  • 305/70R17 17x9 8x170 -12 -
  • 285/75R17 17x9 8x170 -12 -
  • 35x12.50R17 17x9 8x170 +0 -
  • 35x12.50R17 17x9 8x170 +1 -
  • 35x12.50R17 17x9 8x170 +18 -
  • 35x12.50R17 17x9 8x170 +20 -
  • 35x12.50R18 18x8.5 8x170 +0 -
  • 295/70R18 18x8.5 8x170 +0 -
  • 35x12.50R18 18x8.5 8x170 +1 -
  • 295/70R18 18x8.5 8x170 +1 -
  • 35x12.50R18 18x9 8x170 -12 -
  • 305/65R18 18x9 8x170 -12 -
  • 295/70R18 18x9 8x170 -12 -
  • 285/75R18 18x9 8x170 -12 -
  • 285/70R18 18x9 8x170 -12 -
  • 275/75R18 18x9 8x170 -12 -
  • 35x12.50R18 18x9 8x170 +0 -
  • 305/65R18 18x9 8x170 +0 -
  • 295/70R18 18x9 8x170 +0 -
  • 285/75R18 18x9 8x170 +0 -
  • 285/70R18 18x9 8x170 +0 -
  • 275/75R18 18x9 8x170 +0 -
  • 35x12.50R18 18x9 8x170 +1 -
  • 305/65R18 18x9 8x170 +1 -
  • 295/70R18 18x9 8x170 +1 -
  • 285/75R18 18x9 8x170 +1 -
  • 285/70R18 18x9 8x170 +1 -
  • 275/75R18 18x9 8x170 +1 -
  • 35x12.50R18 18x9 8x170 +18 -
  • 295/70R18 18x9 8x170 +18 -
  • 35x12.50R18 18x9 8x170 +20 -
  • 295/70R18 18x9 8x170 +20 -
  • 295/70R18 18x10 8x170 -25 -
  • 295/70R18 18x10 8x170 -19 -
  • 295/70R18 18x10 8x170 -18 -
  • 35x12.50R20 20x9 8x170 -12 -
  • 35x11.50R20 20x9 8x170 -12 -
  • 295/65R20 20x9 8x170 -12 -
  • 295/60R20 20x9 8x170 -12 -
  • 285/60R20 20x9 8x170 -12 -
  • 275/65R20 20x9 8x170 -12 -
  • 35x12.50R20 20x9 8x170 +0 -
  • 35x12.50R20 20x9 8x170 +1 -
  • 35x12.50R20 20x9 8x170 +18 -
  • 35x12.50R20 20x9 8x170 +20 -
  • 35x12.50R20 20x10 8x170 -25 Minor Trimming
  • 35x12.50R20 20x10 8x170 -19 Minor Trimming
  • 295/60R20 20x10 8x170 -19 Minor Trimming
  • 285/60R20 20x10 8x170 -19 -
  • 35x12.50R20 20x10 8x170 -18 Minor Trimming
  • 295/60R20 20x10 8x170 -18 Minor Trimming
  • 285/60R20 20x10 8x170 -18 -
  • 35x12.50R22 22x10 8x170 -25 Minor Trimming
  • 35x12.50R22 22x10 8x170 -19 Minor Trimming
  • 285/55R22 22x10 8x170 -19 -
  • 35x12.50R22 22x10 8x170 -18 Minor Trimming
  • 285/55R22 22x10 8x170 -18 -


    • CAD $3,316.95
    Retail price CAD $3,316.95
    Online Availability
    0

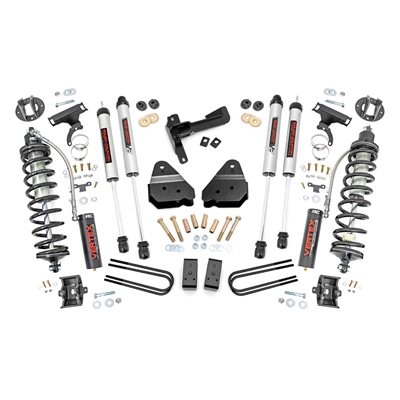

    This kit contains 7 products
    1
    486 Kit Box | Ford Super Duty (05-07)
    Code: RC-1486BOX2
    1
    3" Kit Box | Coilover Conversion | Ford Super Duty (05-23)
    Code: RC-50221991
    1
    2 Inch Block & U-Bolt Kit | Ford F-250 Super Duty 2WD / 4WD (2005-2010)
    Code: RC-6557
    View product
    1
    Vertex 2.5 Adj 8-Step FR Left 2.5IN-4IN Diesel | Ford F250 / F350 4WD (05-23)
    Code: RC-680054L-2
    1
    Vertex 2.5 Adj 8-Step FR Right 2.5IN-4IN Diesel | Ford F250 / F350 4WD (05-23)
    Code: RC-680054R-2
    1
    V2 MONOTUBE SHOCK PAIR
    Code: RC-760789
    1
    Kit Box | Ford Super Duty (05-10)
    Code: RC-148640991
