OVERVIEW

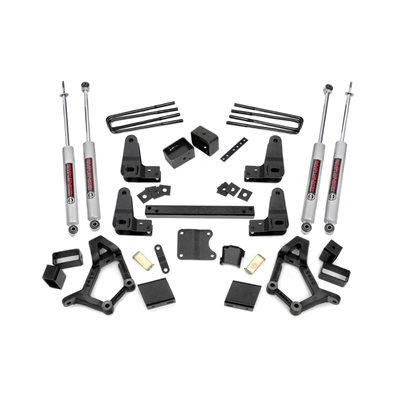

Give your 86-95 Toyota Pickup an aggressive new look and unparalleled off-road performance with Rough Country's 4-5 inch Suspension Lift. This all-inclusive kit features everything needed to take your Pickup off the freeway and onto the trails. Featuring a set of durable knuckles adapters, you'll gain enough ride height to run up to 33-inch tires with proper wheel spacing! A set of differential drop brackets, sway-bar brackets, and bump stop brackets are provided to keep everything at optimum angles for a factory-like ride, even after lifting. A 3-piece front and rear steel crossmember bring uncompromising strength and good looks to your truck. Our Fabricated Rear Blocks offer considerably more strength than their cast iron counterparts. A set of Rough Country's premium N3 shocks are also included in this kit. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body. Best of all, Rough Country's 86-95 4-5 inch Toyota Suspension Lift is backed by our Lifetime Replacement Warranty.
Features
- Easy bolt-on installation Increased ground clearance Levels the front with the rear of the vehicle.
Notes
- Due to u-bolt dimensions this kit will fit 1986-1988 Standard Cab Pickups.
- 1989-1995 Standard Cab models will need to use SKU: 734.20 .
Install Time
6-8 hours
Instruction
View Instruction SheetFitment
- 1986-1989 4WD Toyota 4Runner
- 1986-1995 4WD Toyota Pickup
Tire Fitment
View all 67 tire & wheel combinations
| Size | Wheel | Bolt Pattern | Wheel Offset | Note |
|---|
| 33x12.50R15 | 15x8 | 6x5.5 | -19 | - |
| 33x12.50R15 | 15x8 | 6x5.5 | -18 | - |
| 33x12.50R15 | 15x10 | 6x5.5 | -39 | Trimming Required |
| 33x12.50R16 | 16x8 | 6x5.5 | -19 | - |
| 33x12.50R16 | 16x8 | 6x5.5 | -18 | - |
| 33x12.50R16 | 16x8 | 6x5.5 | -12 | - |
| 285/75R16 | 16x8 | 6x5.5 | -12 | - |
| 33x12.50R17 | 17x8 | 6x5.5 | -19 | - |
| 33x12.50R17 | 17x8 | 6x5.5 | -18 | - |
| 33x12.50R17 | 17x8.5 | 6x5.5 | +0 | - |
| 285/70R17 | 17x8.5 | 6x5.5 | +0 | - |
| 33x12.50R17 | 17x8.5 | 6x5.5 | +1 | - |
| 285/70R17 | 17x8.5 | 6x5.5 | +1 | - |
| 33x12.50R17 | 17x9 | 6x5.5 | -12 | - |
| 285/70R17 | 17x9 | 6x5.5 | -12 | - |
| 33x12.50R17 | 17x9 | 6x5.5 | +0 | - |
| 285/70R17 | 17x9 | 6x5.5 | +0 | - |
| 33x12.50R17 | 17x9 | 6x5.5 | +1 | - |
| 285/70R17 | 17x9 | 6x5.5 | +1 | - |
| 33x12.50R18 | 18x8 | 6x5.5 | -19 | - |
| 33x12.50R18 | 18x8 | 6x5.5 | -18 | - |
| 33x12.50R18 | 18x8.5 | 6x5.5 | +0 | - |
| 305/60R18 | 18x8.5 | 6x5.5 | +0 | - |
| 285/65R18 | 18x8.5 | 6x5.5 | +0 | - |
| 275/65R18 | 18x8.5 | 6x5.5 | +0 | - |
| 33x12.50R18 | 18x8.5 | 6x5.5 | +1 | - |
| 305/60R18 | 18x8.5 | 6x5.5 | +1 | - |
| 285/65R18 | 18x8.5 | 6x5.5 | +1 | - |
| 275/65R18 | 18x8.5 | 6x5.5 | +1 | - |
| 33x12.50R18 | 18x9 | 6x5.5 | -12 | - |
| 305/60R18 | 18x9 | 6x5.5 | -12 | - |
| 285/65R18 | 18x9 | 6x5.5 | -12 | - |
| 275/65R18 | 18x9 | 6x5.5 | -12 | - |
| 33x12.50R18 | 18x9 | 6x5.5 | +0 | - |
| 305/60R18 | 18x9 | 6x5.5 | +0 | - |
| 285/65R18 | 18x9 | 6x5.5 | +0 | - |
| 275/65R18 | 18x9 | 6x5.5 | +0 | - |
| 33x12.50R18 | 18x9 | 6x5.5 | +1 | - |
| 305/60R18 | 18x9 | 6x5.5 | +1 | - |
| 285/65R18 | 18x9 | 6x5.5 | +1 | - |
| 275/65R18 | 18x9 | 6x5.5 | +1 | - |
| 33x12.50R20 | 20x8 | 6x5.5 | -19 | - |
| 33x12.50R20 | 20x8 | 6x5.5 | -18 | - |
| 33x12.50R20 | 20x9 | 6x5.5 | -12 | - |
| 305/55R20 | 20x9 | 6x5.5 | -12 | - |
| 285/55R20 | 20x9 | 6x5.5 | -12 | - |
| 33x12.50R20 | 20x9 | 6x5.5 | +0 | - |
| 305/55R20 | 20x9 | 6x5.5 | +0 | - |
| 285/55R20 | 20x9 | 6x5.5 | +0 | - |
| 33x12.50R20 | 20x9 | 6x5.5 | +1 | - |
| 305/55R20 | 20x9 | 6x5.5 | +1 | - |
| 285/55R20 | 20x9 | 6x5.5 | +1 | - |
| 33x12.50R20 | 20x10 | 6x5.5 | -25 | Minor Trimming |
| 305/55R20 | 20x10 | 6x5.5 | -25 | Minor Trimming |
| 285/55R20 | 20x10 | 6x5.5 | -25 | Minor Trimming |
| 33x12.50R20 | 20x10 | 6x5.5 | -19 | Minor Trimming |
| 305/55R20 | 20x10 | 6x5.5 | -19 | Minor Trimming |
| 285/55R20 | 20x10 | 6x5.5 | -19 | Minor Trimming |
| 33x12.50R20 | 20x10 | 6x5.5 | -18 | Minor Trimming |
| 305/55R20 | 20x10 | 6x5.5 | -18 | Minor Trimming |
| 285/55R20 | 20x10 | 6x5.5 | -18 | Minor Trimming |
| 33x12.50R22 | 22x10 | 6x5.5 | -25 | Trimming Required |
| 305/45R22 | 22x10 | 6x5.5 | -25 | - |
| 33x12.50R22 | 22x10 | 6x5.5 | -19 | Trimming Required |
| 305/45R22 | 22x10 | 6x5.5 | -19 | - |
| 33x12.50R22 | 22x10 | 6x5.5 | -18 | Trimming Required |
| 305/45R22 | 22x10 | 6x5.5 | -18 | - |
